Nissan Navara NP300 (2015-2020 ) 2.3L Twin Turbo and Single Turbo Diesel Direction Plus Transchill Transmission Cooler Kit TCB630DPK

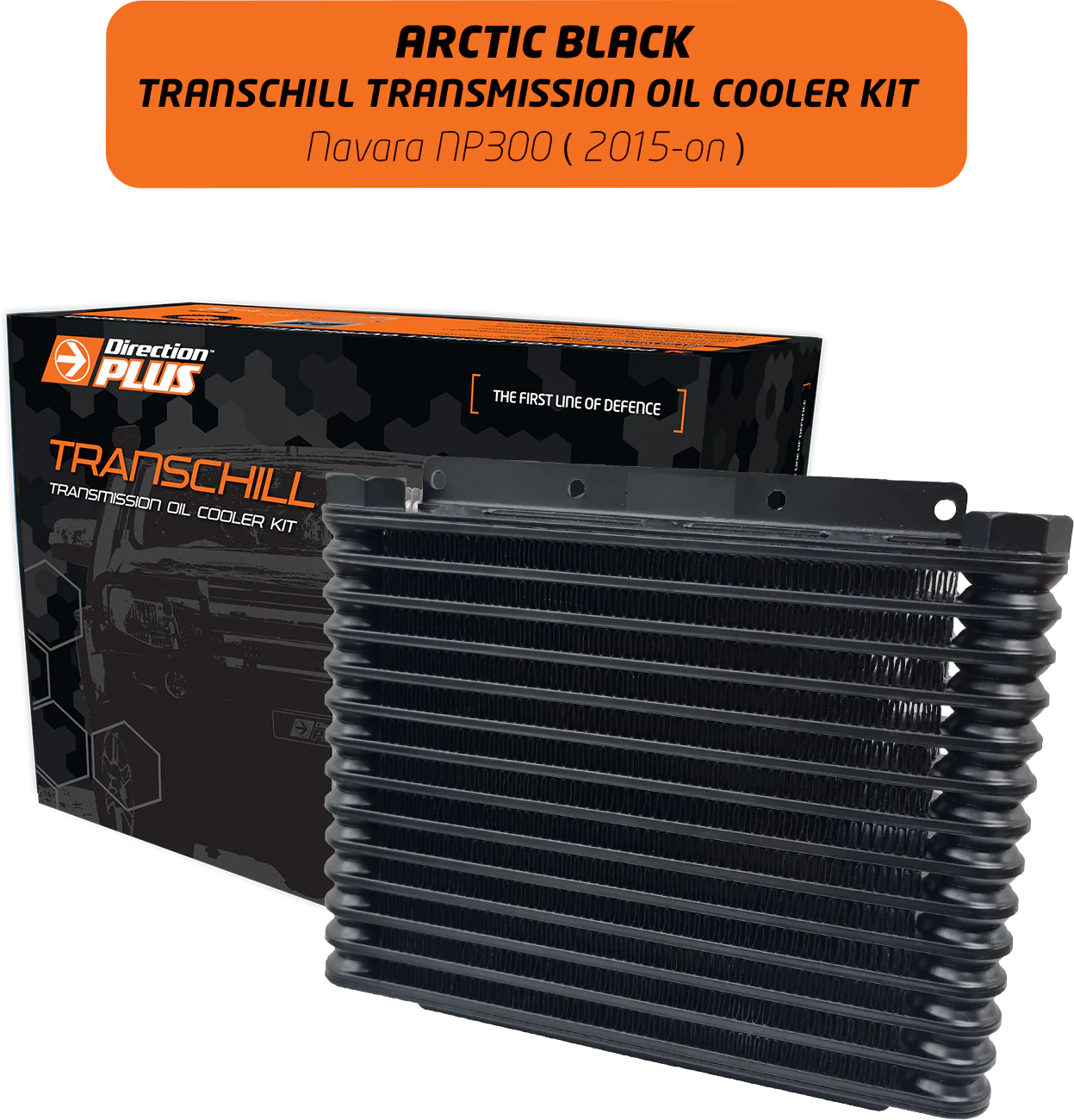

The NEW & IMPROVED 32mm 14 row Arctic Black TransChill Transmission Oil Cooler Kit (TCB630DPK) is made to fit the Nissan Navara NP300 YS23DTTi (2.3L 4cyl) 2015- On models.

It is intended to reduce the high transmission temperature generated by towing, carrying loads, and driving in sand, snow, off-road, or hot environments.

The cooler's 32mm design offers superior heat transfer with high-efficiency turbulators embedded in each tube. Its plate & fin shape allows for improved cooling output, while its space-saving form perfectly suits vehicle-specific mounting.

AUTOMATIC TRANSCHILL CONTENTS:

• 32mm, 14 row fin & plate design allows for extreme cooling

• Durable Black powder coat resists oxidisation

• Pressure tested at 150psi for quality assurance

• Internal tubulation for efficient heat transfer

• 75% more performance than a comparable tube and fin design (*heat transfer rate – BTU/hr)

• Pre-drilled mounting plates for easy installation

• Inlet & Outlet size: M16 fittings

WHY DO YOU NEED ONE?

Due to the extreme heat generated in an automatic transmission, an auxiliary oil cooler is an economical and efficient way to help protect against costly transmission repairs.
Automatic Transmission Fluid (ATF) cools, lubricates and cleans internal transmission components. When transmission components exceed 93°C (200°F) the performance of ATF is seriously compromised.

Subsequently the life span of the ATF, seals and internal components of the transmission are significantly reduced. Higher internal temperatures also increase the wear rate of the friction and clutch plates.

HOW IT WORKS

The Direction-Plus™ Transmission Cooler Kit can reduce the temperature of the ATF by as much as 33°C and assist maintaining acceptable operating temperatures. A reduction of just 11°C that can double the life expectancy of the transmission, ATF and all internal components.

AUTOMATIC TRANSCHILL CONTENTS:

• • Australian Made vehicle specific laser cut 4mm 5005-H34 aluminum mounting brackets

  • Locally designed and packed with all the mounting hardware required for a DIY installation

  • ATF Hose (Meets or exceeds SAE J1019 requirements)

  • 1x Davies Craig Black 32mm 14 row oil cooler

  • 3yr Warranty *Conditions apply
