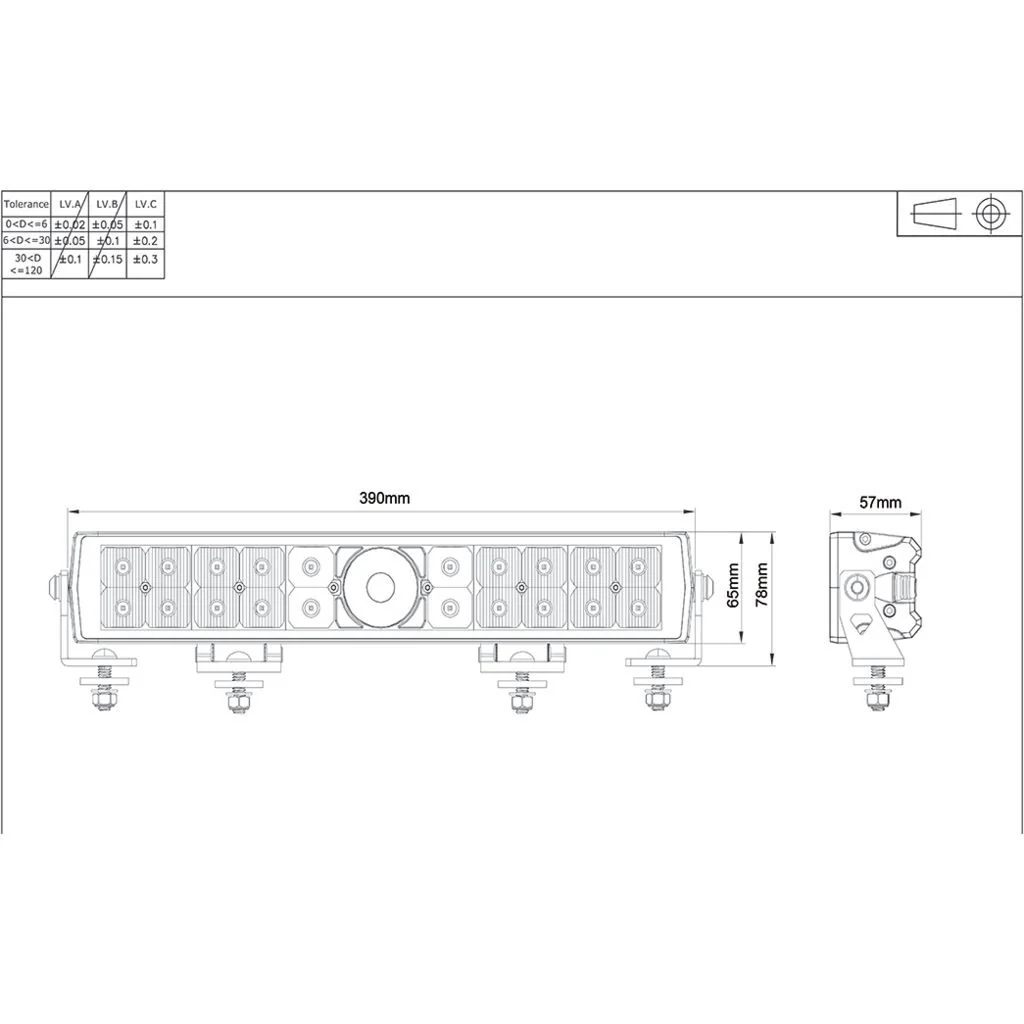

Laser Led Driving Lamp Lightbar Combo Beam 9-36V 95W 8,700Lmns 390Mm Long

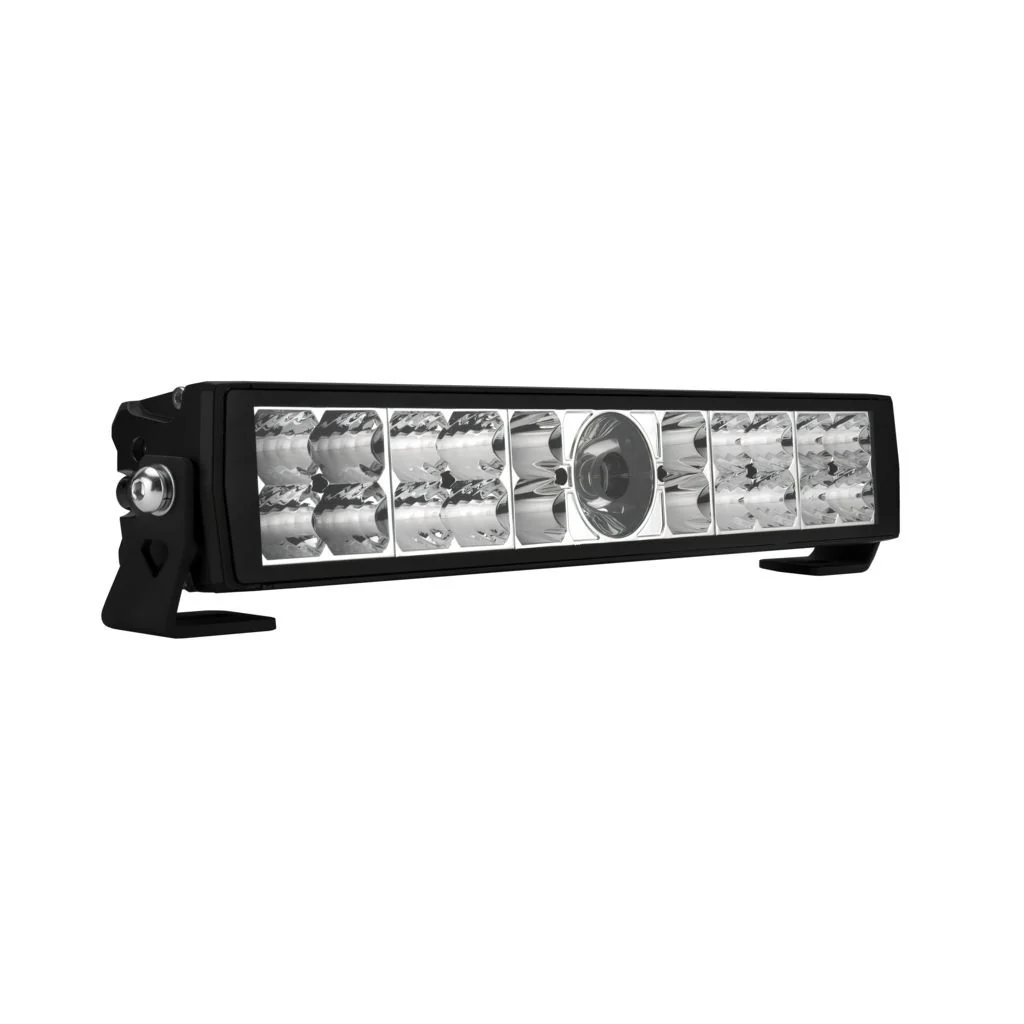

Ignite 15" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 95 Watt
Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent

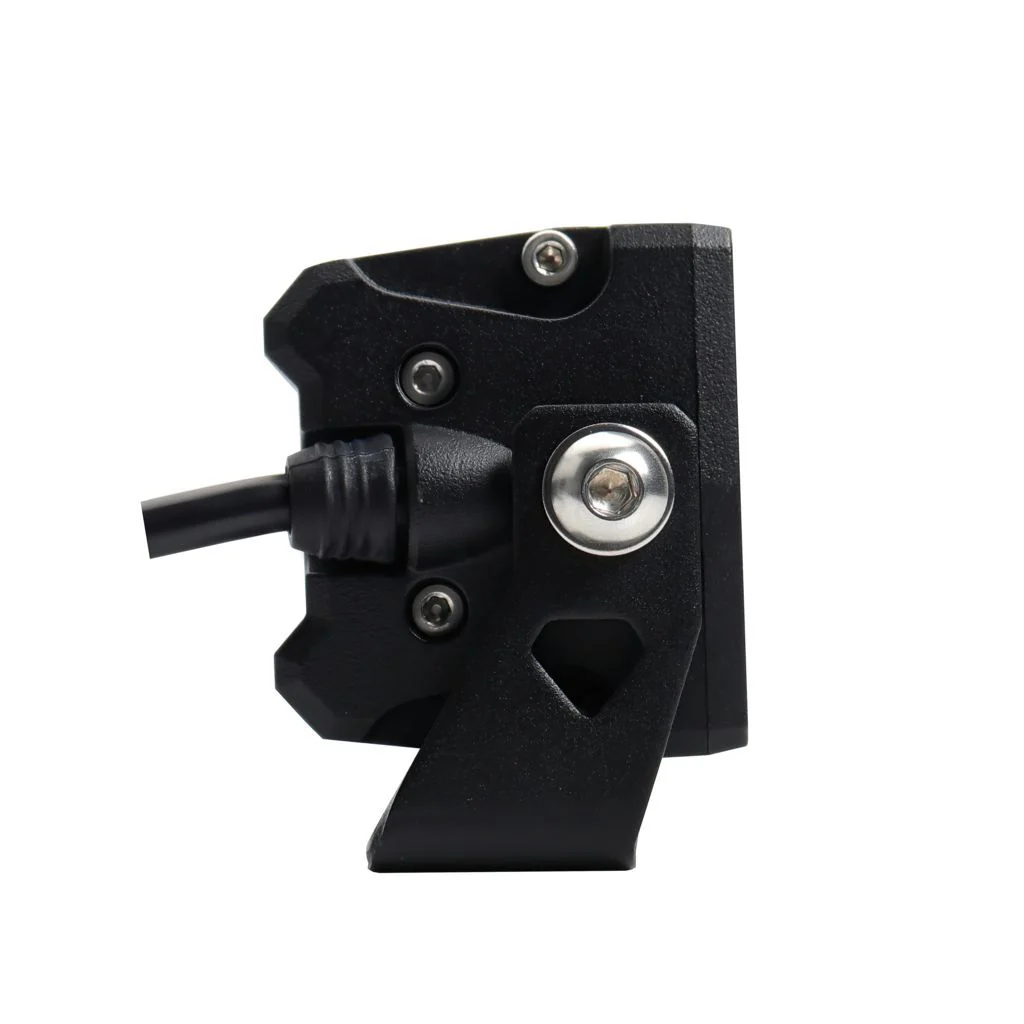

Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
Combined Laser and LED Illumination Technology
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant to 15G
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R112, R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty

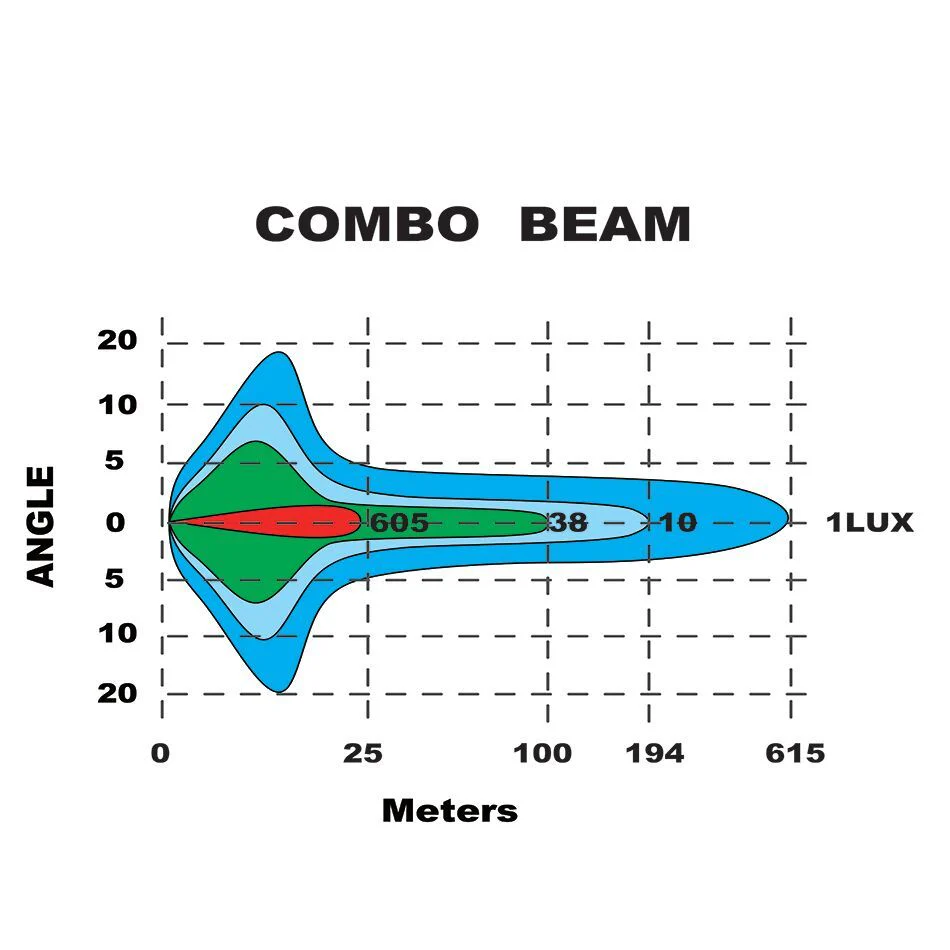

8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
Weight: _ _ _g
.
Spare Parts:-
INPB001 Licence Plate Mounting Bracket
20 x 4 Watt High Intensity LP LED's and 1 x 20 Watt High Intensity Osram Laser LED
8,700 Raw and 7,400 Effective Lumens and 6,000K
1 Lux @ 615m and 378,000cd Peak Beam Intensity
Current Draw: 6.5amp @ 12 Volt and 3.3amp @ 24 Volt
Description
Ignite 15" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 95 Watt
Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
Combined Laser and LED Illumination Technology
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant to 15G
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R112, R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
Weight: _ _ _g
.
Spare Parts:-
INPB001 Licence Plate Mounting Bracket
20 x 4 Watt High Intensity LP LED's and 1 x 20 Watt High Intensity Osram Laser LED
8,700 Raw and 7,400 Effective Lumens and 6,000K
1 Lux @ 615m and 378,000cd Peak Beam Intensity
Current Draw: 6.5amp @ 12 Volt and 3.3amp @ 24 Volt
